NYSERDA Room Heat Pump Program
Airform Solo

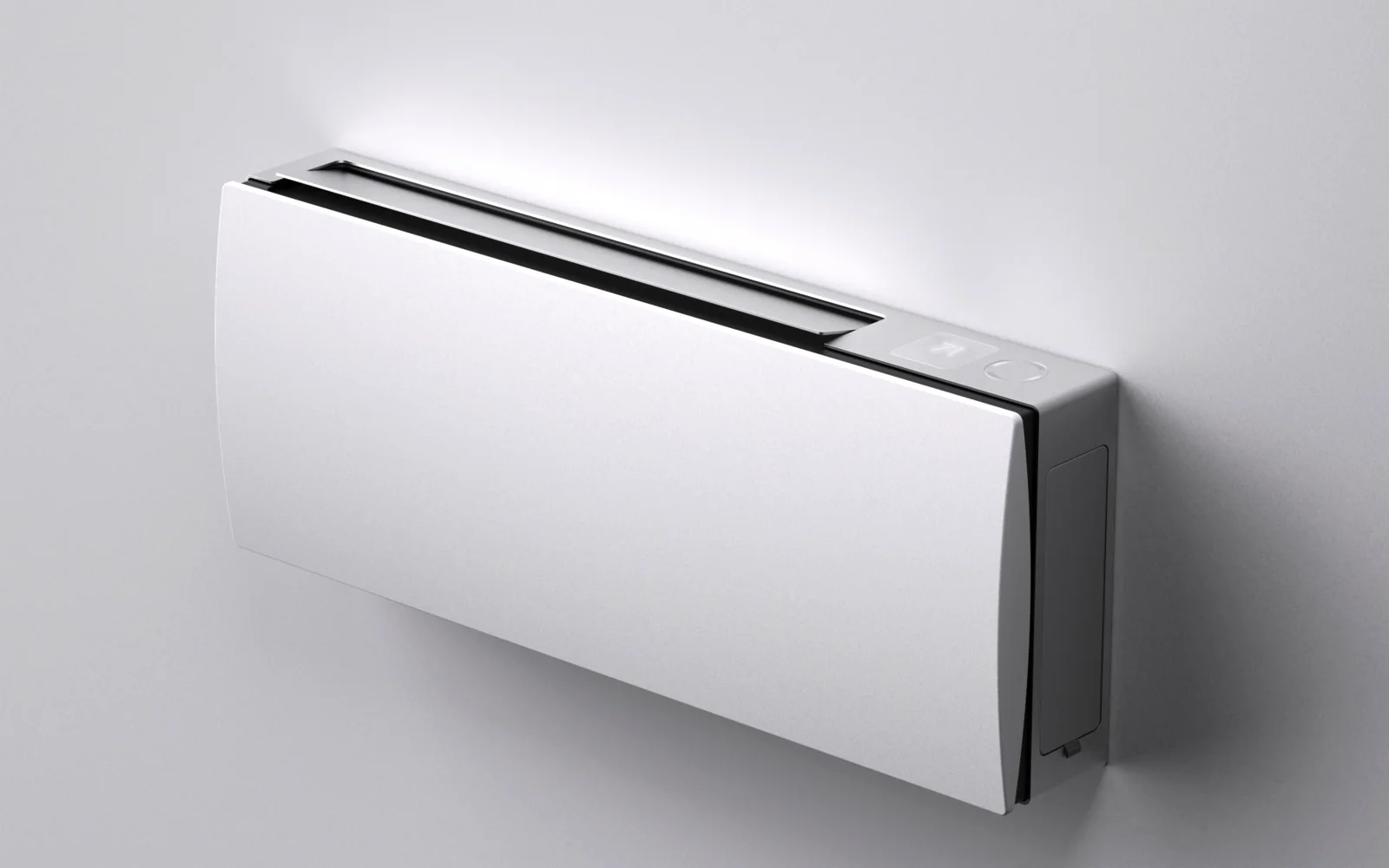

A packaged terminal heat pump that heats and cools a room, recovers the heat from its own ventilation, and installs through a single wall. Awarded under the Room Heat Pump Program and built for the buildings New York already has.
Contact us
Programme
NYSERDA Clean Heat for All
Agreement
261989
Awarded model
Airform Solo PTHP
Field demonstrations
Q4 2026 to Q1 2027
Specifications
Dimensions & fitment
- Unit dimensions
- 15.75 in H x 41.75 in W x 17.5 in D
Heating performance
- Rated capacity
- 10,000 BTU/hr
- NEEP cold climate
- COP at least 1.75 at 5F, at rated capacity
- Efficiency
- HSPF2 at least 8.5
- Compressor
- Variable-speed, inverter-driven
Cooling performance
- Rated capacity
- 10,000 BTU/hr
- Efficiency
- SEER2 at least 18
Energy recovery ventilation
- Airflow
- 48 CFM
- Effectiveness
- Total recovery at least 60%
- Standards
- Meets ASHRAE 90.1 and 62.1 (at 300 sq ft)
Electrical
- Power supply
- 230/208 V, 1 Ph, 60 Hz
- Monitoring
- Input current and input power monitoring and recording
- Power quality
- Power factor correction
Controls & grid integration
- Connectivity
- 2.4/5 GHz Wi-Fi; wired Ethernet port
- Building automation
- BACnet (over Ethernet)
- Sensing
- Room occupancy sensor
- Telemetry
- Optional remote monitoring and logging when internet is available
Installation & serviceability
- Wall penetration
- Gasket and insulation included

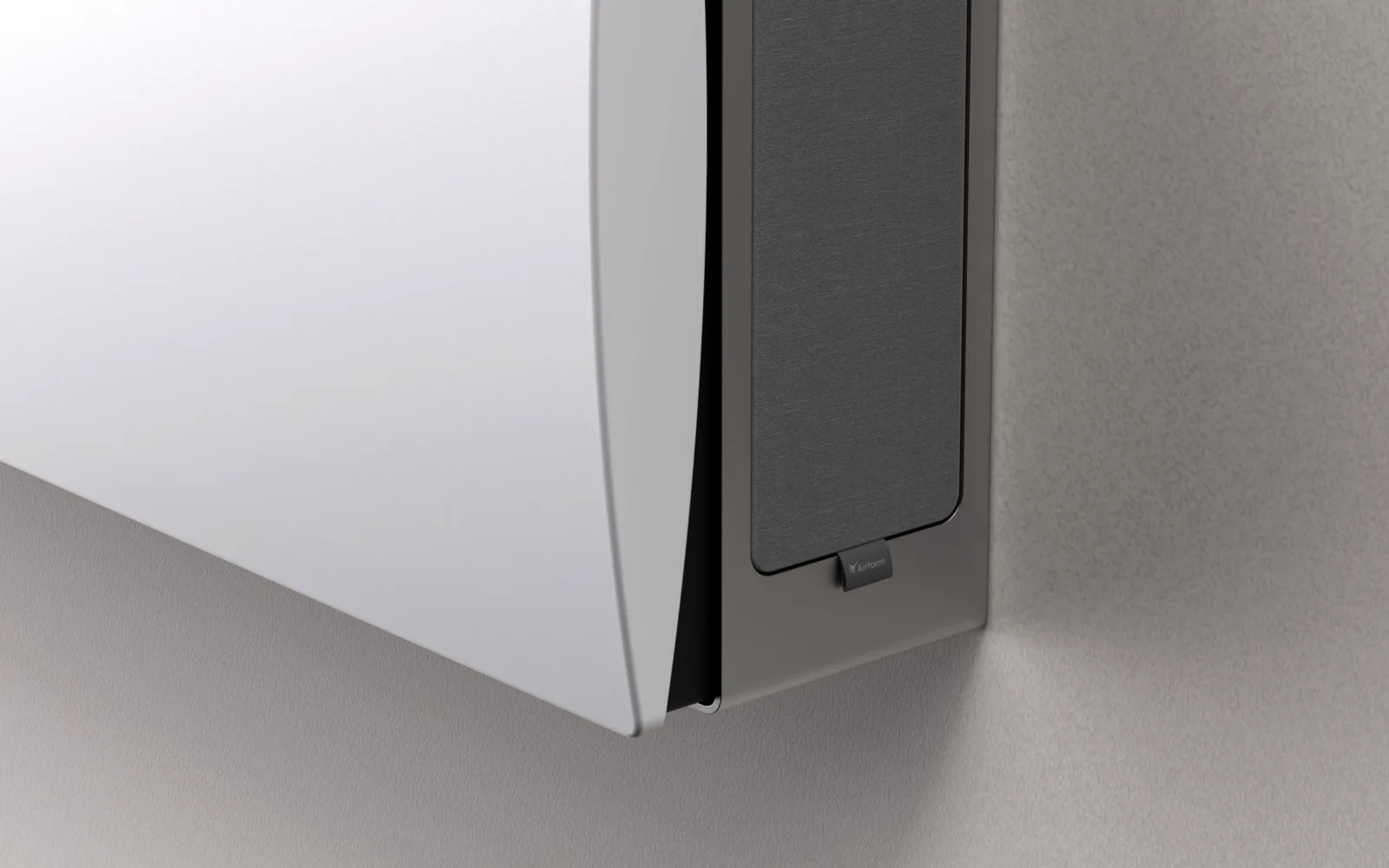

- Filtration
- Removable, off-the-shelf filters
- Alerts
- Remote alerts and reminders for maintenance, errors and failures
Acoustics
- Sound level
- 27 dB indoor / 46 dB outdoor
Additional features
- Condensate
- Prevents drippage in heating mode
- Air quality sensors
- Configurable indoor/outdoor: temperature, humidity, CO2, formaldehyde, VOC, CO, PM2.5 / PM5 / PM10
- Front panel
- Colour options available
Certification
- Testing
- To be tested and certified under AHRI 310/380
Specifications reflect the design specification approved by NYSERDA in the Design Acknowledgement and Project Plan (Subtask 2.1). Performance values are design targets pending laboratory testing and AHRI 310/380 certification, and are subject to change.
Talk to us about your building.
Whether you are scoping a single floor or a whole portfolio, tell us about the building and we will come back to you directly.
Awarded under the NYSERDA Room Heat Pump Program
